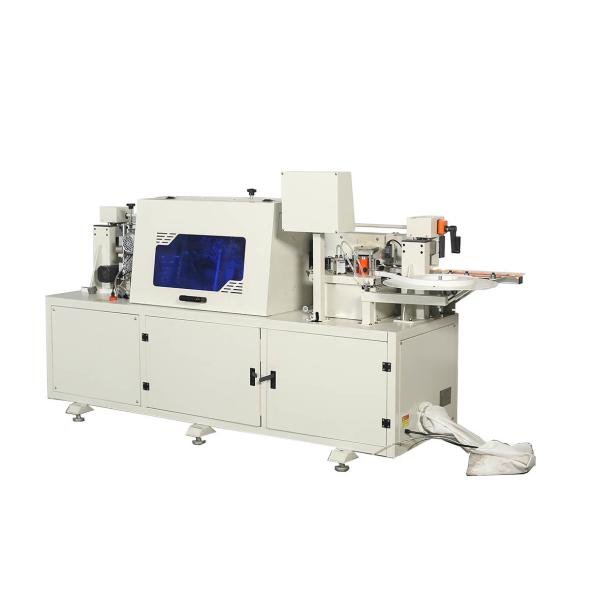

Pneumatic flush edge banding machine automatic high speed for straight edge banding

Main functions: gluing, tape cutting, trimming, head-to-head alignment, tail-to-end alignment, scraping, polishing, vacuuming

product description

This full-line high-speed automatic edge banding machine has almost the same appearance as a large automatic edge banding machine, and has a similar structure. Maintenance is more convenient; double profiling guide rail chain blocks, with reinforced 100*50 widening beams, ensure the parallelism of plate conveying, double row pressing rollers fix the plate, and there will be no deviation during the conveying process; double-sided gluing device, The gluing process is smooth, without leakage or continuous gluing; the trimming head device adopts the modular structure design, cooperates with the high-speed brushless spindle motor, double-cylinder microcomputer control, the upper and lower profile scraping, removes the excess residual edge, and the glue line is not obvious, The edge is more beautiful; the top and bottom are polished, so that the edge is round and does not cut hands. This machine has complete functions and small footprint, which is a good helper for furniture, cabinet and wardrobe processing.

Main function introduction
1. Fully automatic and more convenient, automatic feeding conveyor belt, easy to deal with the troubles of manual push plate, using conveyor belt principle and auxiliary frame to perfectly match the pressing plate, making it more stable and smoother edge sealing, self-propelled design makes the plate double-sided The glue effect is beautiful and natural.
2. Double speed governors, the speed of edge banding can be adjusted, and the speed of the feeding belt can be adjusted according to your own proficiency.
3. Intelligent temperature control thermostat, digital display temperature value, according to the set temperature, the machine will automatically heat to the set temperature, energy saving and safety, circuit protection
4. Independent switch design, feeding, edge sealing, trimming, polishing and vacuuming are all independent switches, easy to operate and easy to understand, more secure
5. Double-sided gluing device, automatic tracking of the board, no glue breakage and glue leakage, uniform and stable gluing, and firmer pasting
6. Strong power, low noise, pure copper core motor, high power and low energy consumption, stable operation and longer life
7. large-capacity glue pots, the amount of glue can be adjusted at will
8. Pneumatic control of the head device, cutting is accurate and fast, eliminating the need for manual trimming in the later stage, and improving efficiency

details

Button-type control panel, simple and intuitive operation control, all functions can be started and stopped with one key, speed is adjustable, temperature is digitally displayed, and the text logo can be changed according to needs.

The front and rear alignment cutting device is composed of front flush and rear flush, controlled by solenoid valve, and has the function of flush mounting plate protection. It is cut by a special saw blade and has better stability.

Up and down polishing, driven by dual motors, use cotton polishing wheel to clean the processed plate, remove excess glue stains, and make the edge sealing end surface smoother and tidy by polishing
