12000rpm Woodworking Copy Milling Machine With Single Spindle

    Buy cheap 12000rpm Woodworking Copy Milling Machine With Single Spindle from wholesalers

    Buy cheap 12000rpm Woodworking Copy Milling Machine With Single Spindle from wholesalers
    • Buy cheap 12000rpm Woodworking Copy Milling Machine With Single Spindle from wholesalers

    12000rpm Woodworking Copy Milling Machine With Single Spindle

    Ask Lasest Price
    Brand Name : ZDS
    Model Number : 7203
    Price : negotiate
    Payment Terms : MoneyGram, Western Union, T/T
    Supply Ability : 100sets/months
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

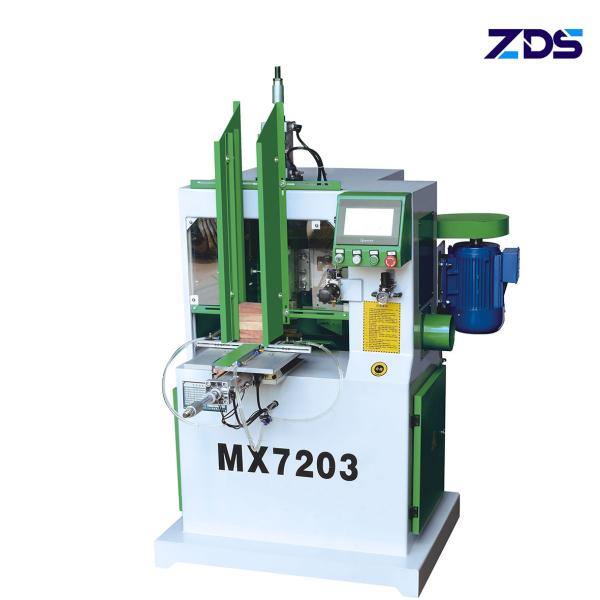

    12000rpm Woodworking Copy Milling Machine With Single Spindle

    Speed-Adjustable Woodworking Copy Milling Machine With Single Spindle


    Features: The operation is simple, the operator is only responsible for simple loading, feeding, and discharging, and the machine automatically completes the work of copying and milling. One person can operate multiple machines, which reduces labor intensity and is safe and efficient.


    1. Exquisite craftsmanship, high production efficiency, the staff is responsible for simple feeding and unloading during operation, and the efficiency can be increased by 2-4 times
    2. Fashionable and beautiful, the operation is safer, avoid the close contact between the hand and the high-speed spindle during the operation, and reduce the accident at work.
    3. Durable, low skill requirements, simple operation, no need for professional technicians to operate, ordinary workers are fully competent, reducing production costs. , Double-sided copy milling professional processing of curved special-shaped wood, high safety factor and high production efficiency.
    4. Efficient operation, speed can be adjusted, according to the dry and wet thickness of wood, the operator's proficiency can adjust the turntable fast and slow.


    NameSpeed-Adjustable Woodworking Copy Milling Machine With Single Spindle
    ModelZDS-7203
    Voltage380V
    Motor power of shaper cutter4kw
    Rotary motor power0.75kw
    Working air pressure0.6~0.8Mpa
    Frequency control of rotary speed4~20r/min
    Cutter spindle speed12000r/min
    Spindle diameterφ25.4mm
    Shaping length50~300mm
    Shaping width15~100mm
    Shaping height5~50mm
    Dust outlet diameter100mm
    Max. rectangular cutting3:1
    Overall dimensions1200*1500*1200mm
    Net weight460kg

    12000rpm Woodworking Copy Milling Machine With Single Spindle

    12000rpm Woodworking Copy Milling Machine With Single Spindle

    Quality 12000rpm Woodworking Copy Milling Machine With Single Spindle for sale
