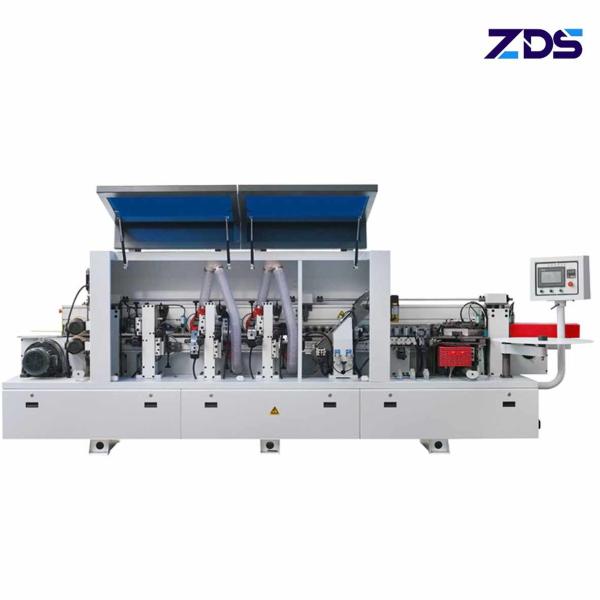

Machine introduction:

♦ PLC intelligent control, independent color LCD screen, convenient, quick and easy to use, real-time monitoring, real-time adjustment, more accurate
♦ The edge sealing and gluing device heats the sol through the glue pot, and adopts the spiral structure to send the glue. The glue application speed is fast and uniform, and the adhesive force is firm.
♦ The edge banding pressing device, the edge banding strip and the plate are pressed by the roller, and the sticking is more firm.
♦ The end trimming device, through the structure of automatic mold tracking and high-frequency high-speed motor, ensures that the cut surface is smooth and smooth, and has the protection function of flushing against the plate to enhance the stability of the flush.
♦ The tool in the rough trimming part is a flat knife, which is used to trim the excess edge banding material on the upper and lower parts of the edge band of the processed sheet. High-frequency high-speed motor is used to achieve rapid cutting, so that the upper and lower parts of the trimmed sheet are flat and smooth.
♦ Finishing trimming device, the finishing knife is R2 inclined knife, adopts automatic tracking of the mold and high-frequency motor to realize fast cutting, and the R2 inclined knife repairs the radian.
♦ Edge scraping device, profile scraping, used to eliminate the secondary wave marks caused by the cutting process of the non-linear motion of the trimming.
♦ Polishing device, use cotton polishing wheel to clean the processed plate to make the edge banding section more smooth and tidy.

PLC intelligent control, independent liquid crystal display can see the running process of the machine more clearly and comprehensively, which is convenient, quick and easy to use, real-time monitoring, real-time adjustment, more accurate, high-efficiency production, and the edge sealing effect is not compromised.

The edge-sealing gluing device heats the sol through the gluing pot, and adopts the spiral structure to deliver the glue. The gluing speed is fast, uniform, and the adhesive force is firm.

The end trimming device, through the structure of automatic mold tracking and high-frequency high-speed motor, ensures that the cut surface is smooth and smooth, and has the protection function of flushing the plate to enhance the stability of the flush.

Rough trimming device, the cutter at the rough trimming part is a flat knife, which is used to trim the excess edge sealing material on the upper and lower parts of the edge banding of the processed sheet.

Finishing device, the finishing knife is R2 inclined knife, which can leave 5-6 wire allowance for the next scraping process. The automatic tracking of the mold and the high-frequency motor are used to achieve fast cutting, and the R2 inclined knife is used to repair the radian.

Scraping device, profile scraping, is used to eliminate the secondary wave marks caused by the cutting process of non-linear motion of trimming, so that the upper and lower parts of the plate are more smooth and tidy. better.

The polishing device cleans the processed plate with a cotton polishing wheel, removes excess glue stains, and makes the edge banding section smoother and tidy through polishing.
