| Name | Automatic Double Trimming Edge Banding Machine With Corner Rounding |
| Model | ZDS-468 |
| Working pressure | 0.6Mpa |
| Panel thickness | 10-60mm |
| Edge thickness | 0.4-3mm |
| Min. panel | 300*60mm 150*150mm |
| Voltage | 380V-3HP |
| Power | 13kw |
| Weight | 1600kg |
| Dimensions | 5800*900*1600mm |
PLC intelligent control, independent liquid crystal display can see
the running process of the machine more clearly and
comprehensively, which is convenient, quick and easy to use,
real-time monitoring, real-time adjustment, more accurate,
high-efficiency production, and the edge sealing effect is not
compromised.
The edge-sealing gluing device heats the sol through the gluing
pot, and adopts the spiral structure to deliver the glue. The
gluing speed is fast, uniform, and the adhesive force is firm.

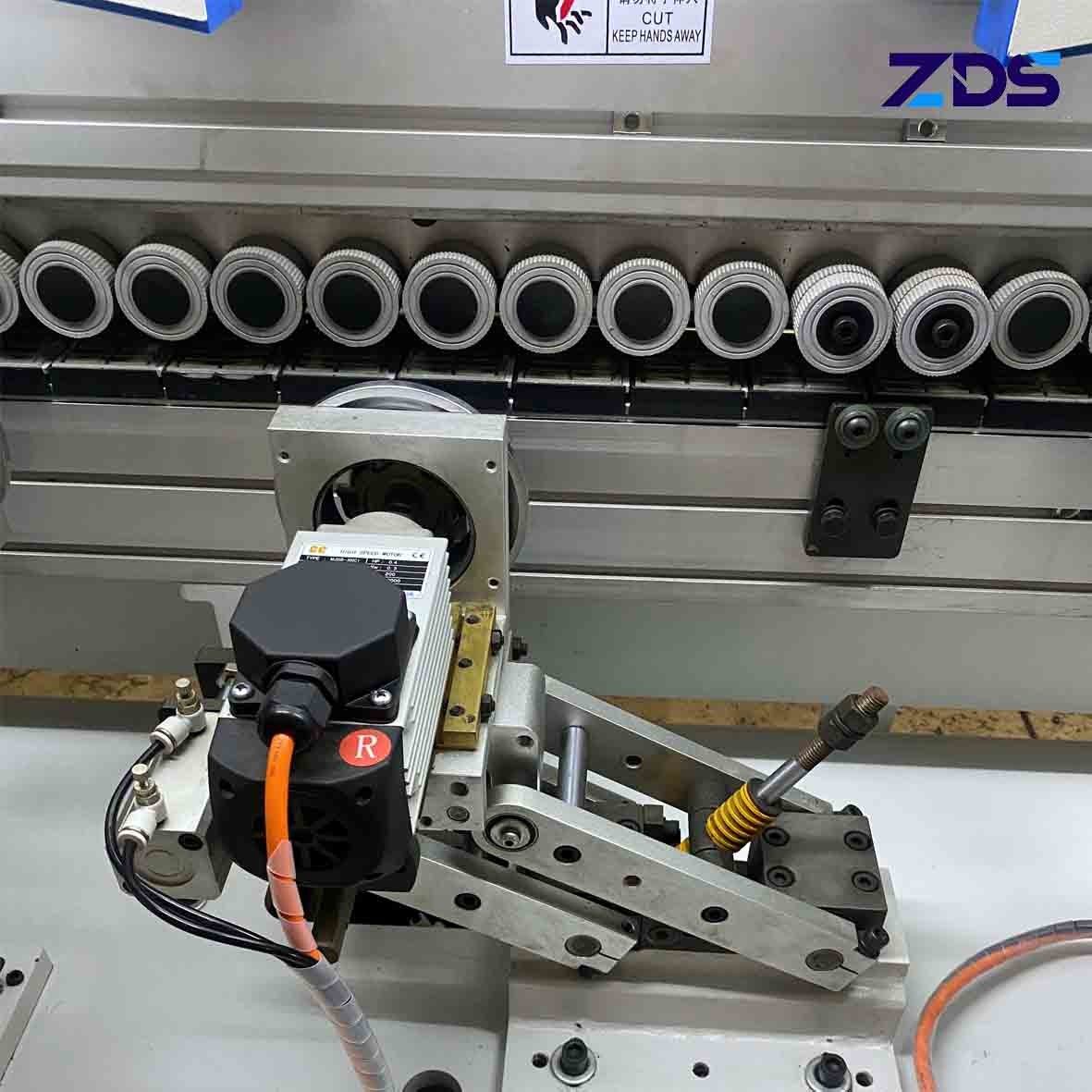

The end trimming device, through the structure of automatic mold
tracking and high-frequency high-speed motor, ensures that the cut
surface is smooth and smooth, and has the protection function of
flushing the plate to enhance the stability of the flush.
Rough trimming device, the cutter at the rough trimming part is a
flat knife, which is used to trim the excess edge sealing material
on the upper and lower parts of the edge banding of the processed
sheet.
Finishing device, the finishing knife is R2 inclined knife, which
can leave 5-6 wire allowance for the next scraping process. The
automatic tracking of the mold and the high-frequency motor are
used to achieve fast cutting, and the R2 inclined knife is used to
repair the radian.
Scraping device, profile scraping, is used to eliminate the
secondary wave marks caused by the cutting process of non-linear
motion of trimming, so that the upper and lower parts of the plate
are more smooth and tidy. better.
The polishing device cleans the processed plate with a cotton
polishing wheel, removes excess glue stains, and makes the edge
banding section smoother and tidy through polishing.
