18000r/Min 6kw*4 Spindle Woodworking CNC Router Automatic Wood Router Machine

Zhengzhou The Right Time Import And Export Co., Ltd.
Contact Now
    Buy cheap 18000r/Min 6kw*4 Spindle Woodworking CNC Router Automatic Wood Router Machine from wholesalers

    Buy cheap 18000r/Min 6kw*4 Spindle Woodworking CNC Router Automatic Wood Router Machine from wholesalers
    • Buy cheap 18000r/Min 6kw*4 Spindle Woodworking CNC Router Automatic Wood Router Machine from wholesalers

    18000r/Min 6kw*4 Spindle Woodworking CNC Router Automatic Wood Router Machine

    Ask Lasest Price
    Brand Name : ZDS
    Model Number : ZDS-NC4
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30sets/months
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    18000r/Min 6kw*4 Spindle Woodworking CNC Router Automatic Wood Router Machine

    18000r/Min 6kw*4 Spindle Woodworking CNC Router Automatic Wood Router Machine


    Panel furniture cutting machine is mainly used for panel furniture cutting, grooving, punching and other processes. At the same time, it includes all the engraving and milling functions of woodworking engraving machines, which can fully meet the needs of panel furniture production and whole house custom production; It is suitable for the processing of diversified complex products or various processing, and has a wide range of uses: one-time cutting, drilling, cutting, chamfering, milling, engraving, etc.


    Choosing the whole house customization means that most of the homes will be panel furniture, which invisibly increases the sales and market share of panel furniture. Panel furniture woodworking cutting machine is indispensable,especially for office furniture manufactures.


    The multi-process cutting machine can automatically change the tool. There are also many materials that can be processed by the cutting machine: MDF, particle board, ecological board, acrylic, solid wood board, etc.


    Product Description
    Name18000r/Min 6kw*4 Spindle Woodworking CNC Router Automatic Wood Router Machine
    ModelZDS-NC4
    Frequency converterInverter 7.5KW (KEKEN)
    Guide rail, sliderTaiwan, Y axis adopts 30#, XZ axis adopts 25#, frame and beam adopt flange slider
    RackTaiwan Jingte high-precision 2-mode helical rack, rack with additional quenching process
    Screw rod2510 Taiwan TBI ball screw
    BearingJapan angular contact bearing x2, domestic deep groove ball bearing x1
    Processing speed0-25m/min
    No load speed0-80m/min
    Accurate relocation+0.2mm
    Total powerabout 24kw
    Total weightabout 3 tons
    Effective working stroke2800X 1220X 200mm (L x W x H)
    Dimensions4000x 2400X 2200mm (L x W x H)
    Voltage380V±5% 50HZ1±1%

    18000r/Min 6kw*4 Spindle Woodworking CNC Router Automatic Wood Router Machine

    18000r/Min 6kw*4 Spindle Woodworking CNC Router Automatic Wood Router Machine

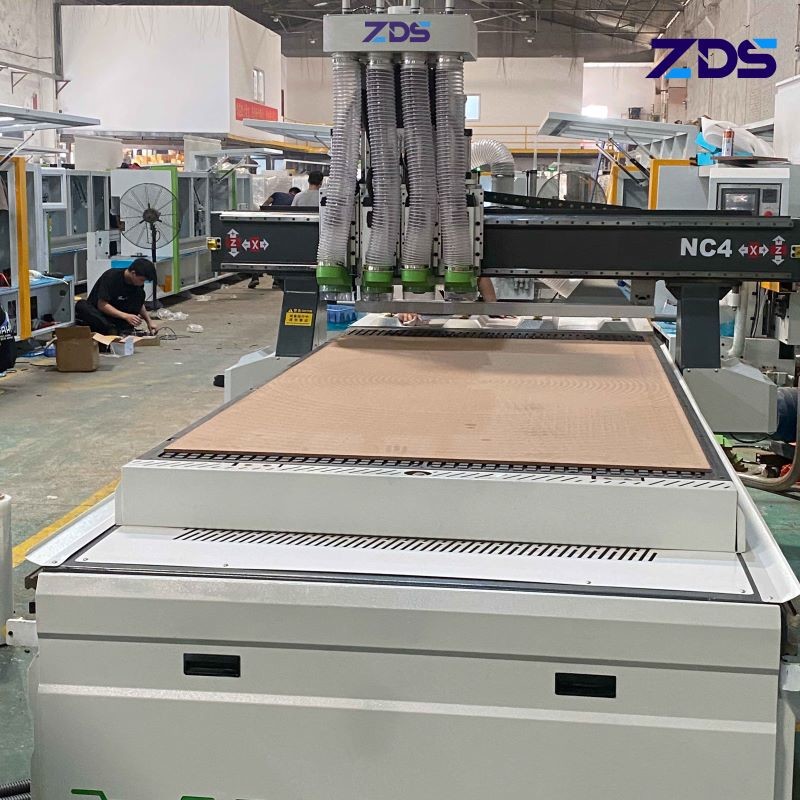

    6kw four-spindle simultaneous machining group


    Polishing device


    Finished Products
