    Portable Edge Banding Machine For Woodworking Pvc 4kw

    Ask Lasest Price
    Brand Name : ZDS
    Model Number : 190
    Price : negotiate
    Payment Terms : MoneyGram, Western Union, T/T
    Supply Ability : 100sets/months
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Portable Edge Banding Machine For Woodworking Pvc 4kw

    Portable Edge Banding Machine For Woodworking Pvc Edge Bander

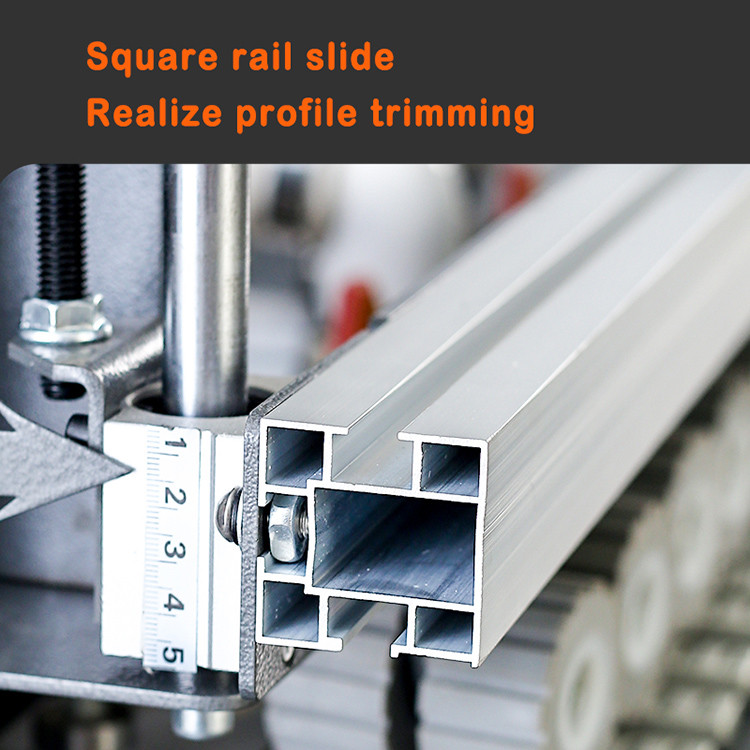

    The portable edge banding machine for woodworking use of square slide rail realizes profiling and trimming, and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape, automatic end cutting, use two big diameter dust collectors, close fit, collecting effect can reach 99%. For crawler transmission, we use steel rod slide rails, which is more stable in delivery, and the real materials can be seen!


    The main function:

    Curved Edge Banding, Straight edge banding, Double Sided Trimming, automatic tape break, automatic feeding


    NameSmall automatic edge banding machine
    Model190

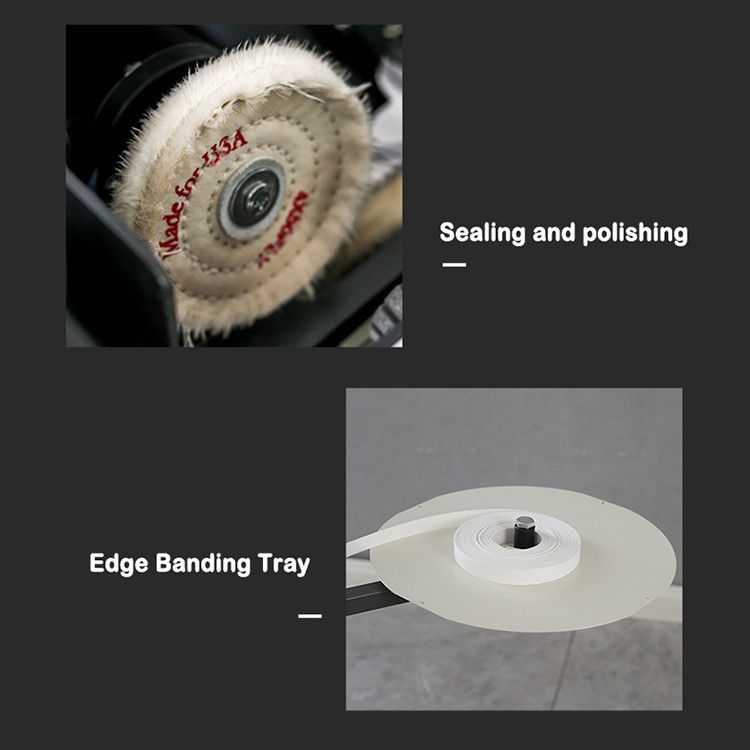

    Functionautomatic plate feeding, double-sided gluing, upper and lower polishing, automatic head and tail trimming, Curved and straight edgebanding
    Edge typeBoth curved and straight lines
    Voltage220v50hz
    Rated power4kw
    Rated air pressure0.4-0.6mpa
    Suction1200w
    Belt power25w
    Transmission power120w
    Heating power800w
    Polishing power180w*2
    Trimming power800w*2
    Conveyer belt0-14m/min

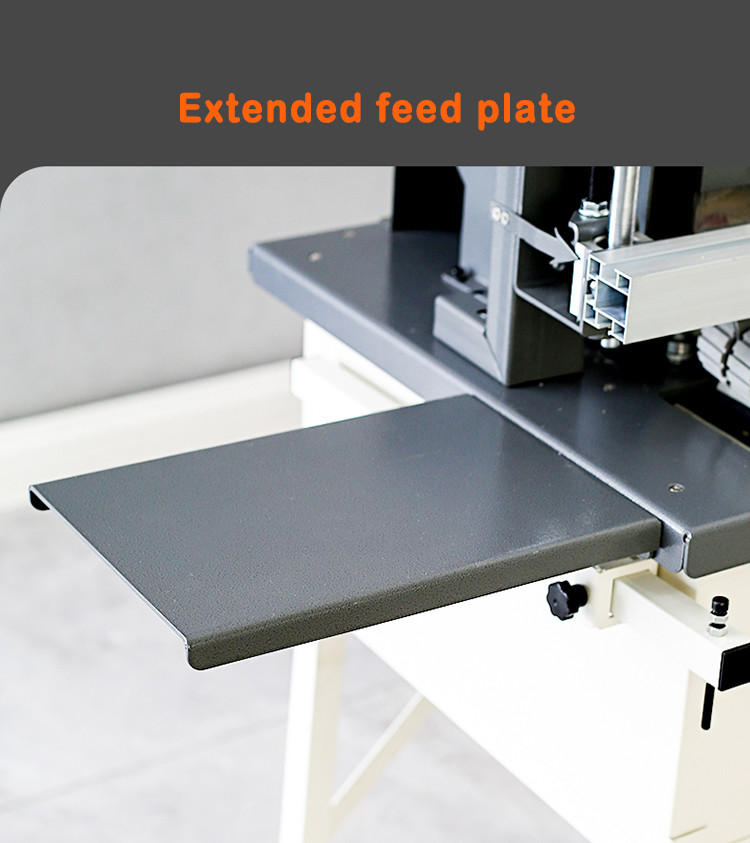

    Feed plate0-14m/min
    Sheet thickness10-50mm
    Strip thickness0.5-2.5mm
    Glue capacity1000ml
    Overall size1900*560*1300mm
    Packing size138*58*64cm
    Weight120kg

    Portable Edge Banding Machine For Woodworking Pvc 4kwPortable Edge Banding Machine For Woodworking Pvc 4kwPortable Edge Banding Machine For Woodworking Pvc 4kwPortable Edge Banding Machine For Woodworking Pvc 4kwPortable Edge Banding Machine For Woodworking Pvc 4kwPortable Edge Banding Machine For Woodworking Pvc 4kwPortable Edge Banding Machine For Woodworking Pvc 4kwPortable Edge Banding Machine For Woodworking Pvc 4kw
