    Plywood Woodworking Edge Bander With Polishing Motor 220V 50hz

    Ask Lasest Price
    Brand Name : ZDS
    Model Number : F400
    Price : negotiate
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100sets/months
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

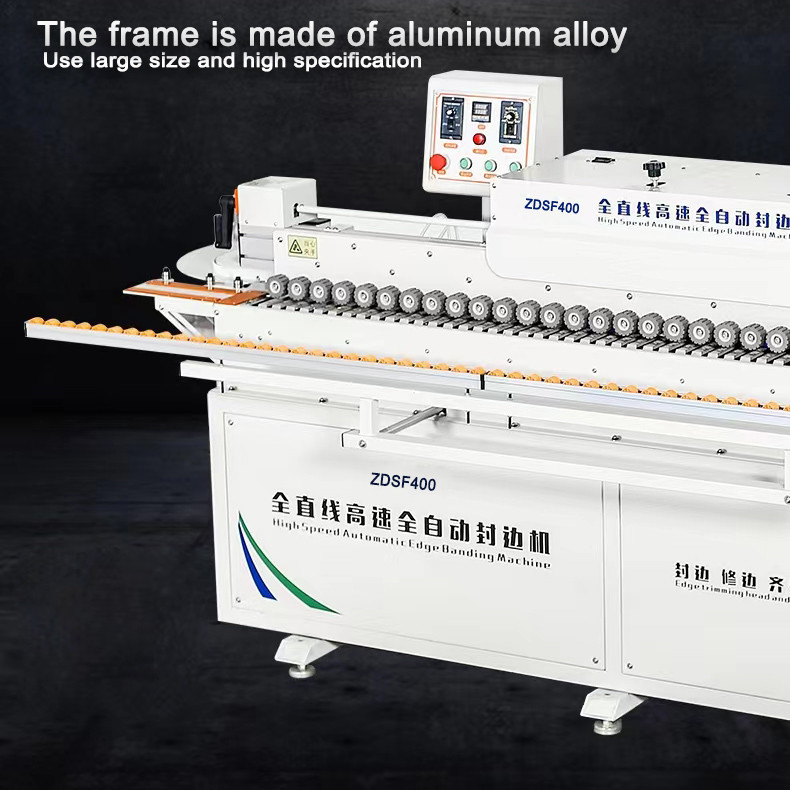

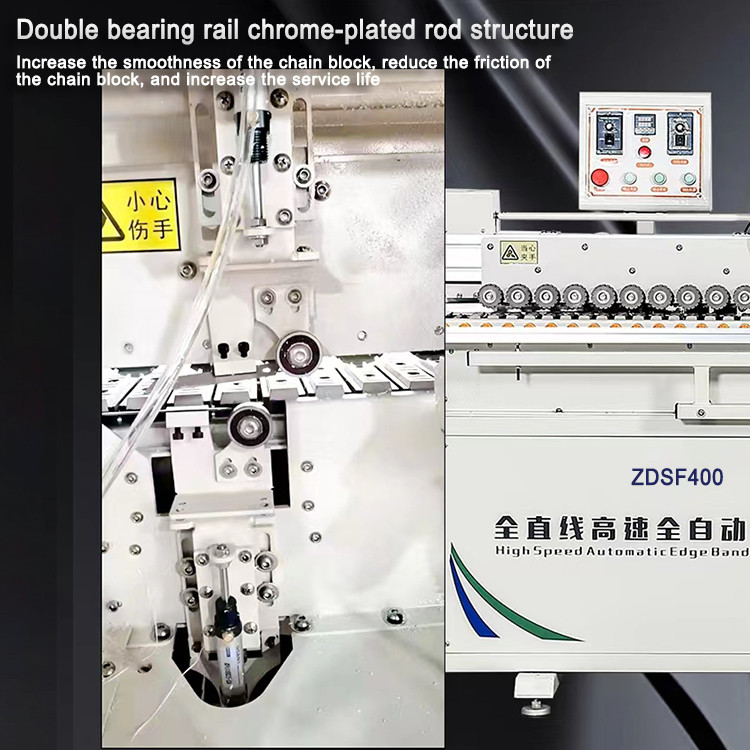

    Plywood Woodworking Edge Bander With Polishing Motor 220V 50hz

    Woodworking Edge Bander With Polishing Motor Edge Banding Machine For Plywood


    Main functions: gluing, tape cutting, trimming, end trimming, scraping, polishing, vacuuming

    Scope of application: straight edge sealing


    Main function introduction

    1. Simple, lightweight, high-quality and affordable.
    2. The woodworking edge banding machine can change the workplace at will to adapt to various work scenarios.
    3. The applicable width of the edge band is increased to 10mm-55mm.
    4. Thermostat: Automatically control the temperature according to the sol temperature required by the edge band and the hot sol.
    5. Governor: adjust the speed of the machine according to the needs of different gluing and pressing.
    6. All electrical and pneumatic components meet UL and CSA standards, and the whole machine has passed CE testing and certification.


    NameWoodworking Edge Bander With Polishing Motor Edge Banding Machine For Plywood
    ModelZDS-F400
    Rated voltage220v50hz
    Rated power3.5kw
    Rated air pressure0.4-0.6Mpa
    Heating power800w
    Heating time5-10min
    Edge typestraight line
    Conveyor belt power180w
    Conveyor belt speed0-14m/min
    Trimming motor power800w*2
    Trimming motor speed24000r/min

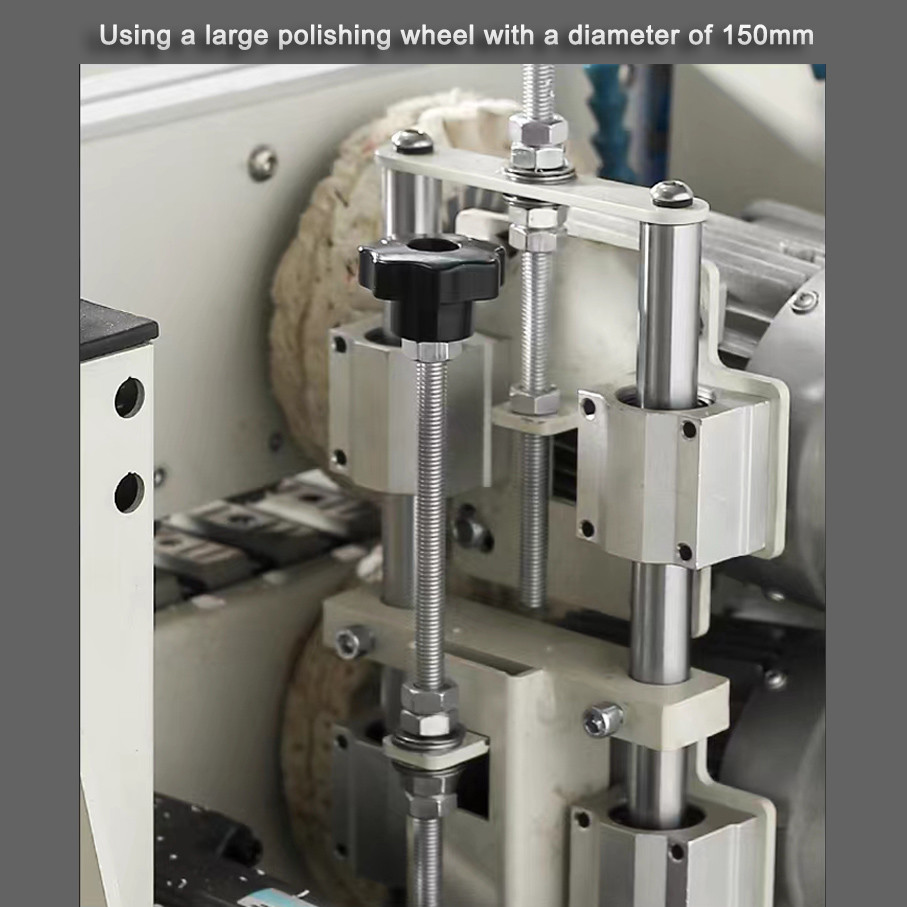

    Polishing motor power180w*2
    Polishing motor speed5500rpm
    Strip width10-55mm
    Strip thickness1-3mm
    Sheet thickness10-55mm
    Sheet width≥60mm
    Size2400*700*1200mm
    Machine weight370kg



    details


    Plywood Woodworking Edge Bander With Polishing Motor 220V 50hz

    Plywood Woodworking Edge Bander With Polishing Motor 220V 50hz

    Plywood Woodworking Edge Bander With Polishing Motor 220V 50hz

    Plywood Woodworking Edge Bander With Polishing Motor 220V 50hz

    Plywood Woodworking Edge Bander With Polishing Motor 220V 50hz

    Plywood Woodworking Edge Bander With Polishing Motor 220V 50hz
