Brand Name : | ZDS |
Model Number : | F400 |
Price : | negotiate |
Payment Terms : | T/T, Western Union, L/C |
Supply Ability : | 100sets/months |
Delivery Time : | 5-8 work days |

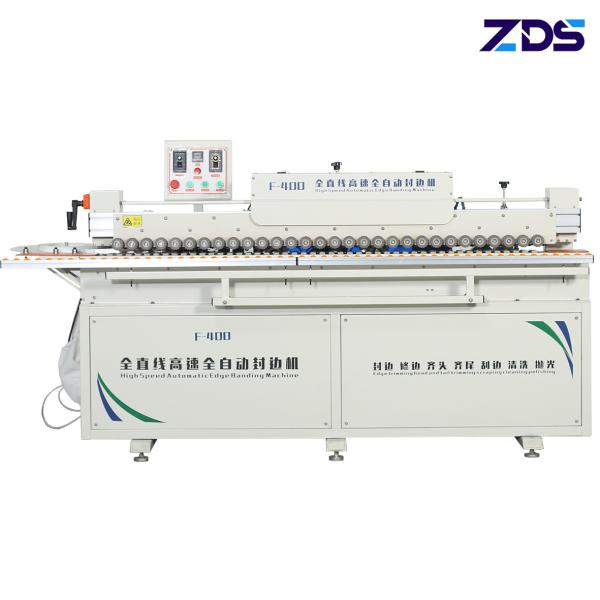

Small High Speed Woodworking Machine Edge Banding Machine For Plywood
F400-Edge banding machine
Main functions:
gluing, tape cutting, trimming, end trimming, scraping, polishing, vacuuming
Scope of application: straight edge sealing
Name | Small High Speed Woodworking Machine Edge Banding Machine For Plywood |
Model | ZDS-F400 |
Rated voltage | 220v |
Rated power | 3500w |
Rated air pressure | 0.4-0.6Mpa |
Heating power | 800w |
Heating time | 5-10min |
Edge type | straight line |
Conveyor belt power | 180w |
Conveyor belt speed | 0-14m/min |
Trimming motor power | 800w*2 |
Trimming motor speed | 24000rpm |
Polishing motor power | 180w*2 |
Polishing motor speed | 5500rpm |
Strip width | 10-55mm |
Strip thickness | 1-3mm |
Sheet thickness | 10-55mm |
Sheet width | ≥60mm |
Size | 240*70*120cm |
Machine weight | 370kg |
details
![]() |
